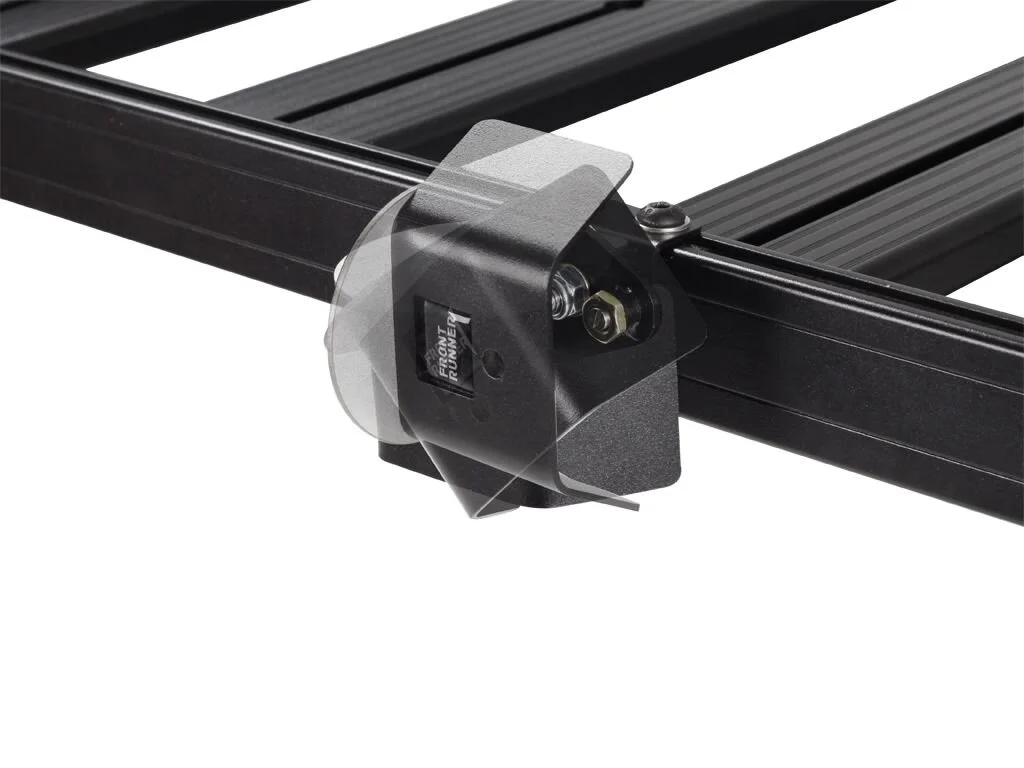

ANTENNA MOUNT - BY FRONT RUNNER
Installs easily into the front, back or side profiles of your Slimline II rack.
The rotation function allows your aerial/antenna to tuck neatly beside your rack when maneuvering under overhead obstacles or into low overhead parking areas.
Rotates 90 degrees forward or backwards. 180 degree total rotation capability.
17mm diameter mounting hole with cable slot.
A spring pin allows the aerial/antenna to drop down when struck by an overhead object.
Includes an additional, bolt on, magnetic plate for aerials/antennae with magnetic bases.
Side guards protect the aerial/antenna connection from potential damage caused by flying rocks and other road debri.
Note: Not suitable for fiberglass antennas
Installs easily into the front, back or side profiles of your Slimline II rack.
The rotation function allows your aerial/antenna to tuck neatly beside your rack when maneuvering under overhead obstacles or into low overhead parking areas.
Rotates 90 degrees forward or backwards. 180 degree total rotation capability.
17mm diameter mounting hole with cable slot.
A spring pin allows the aerial/antenna to drop down when struck by an overhead object.
Includes an additional, bolt on, magnetic plate for aerials/antennae with magnetic bases.
Side guards protect the aerial/antenna connection from potential damage caused by flying rocks and other road debri.
Note: Not suitable for fiberglass antennas
Installs easily into the front, back or side profiles of your Slimline II rack.
The rotation function allows your aerial/antenna to tuck neatly beside your rack when maneuvering under overhead obstacles or into low overhead parking areas.
Rotates 90 degrees forward or backwards. 180 degree total rotation capability.
17mm diameter mounting hole with cable slot.
A spring pin allows the aerial/antenna to drop down when struck by an overhead object.
Includes an additional, bolt on, magnetic plate for aerials/antennae with magnetic bases.
Side guards protect the aerial/antenna connection from potential damage caused by flying rocks and other road debri.
Note: Not suitable for fiberglass antennas
Consists of:
1 x Antenna Mount
1 x Magnetic Antenna Base Plate
Installation Hardware
Fitting Instructions
Materials used:
Black powder coated 3CR12 stainless steel
Product Dimensions:
105mm (4.1") L X 110mm (4.3") W X 60mm (2.4") H
Weight:
600g (21.2oz)
